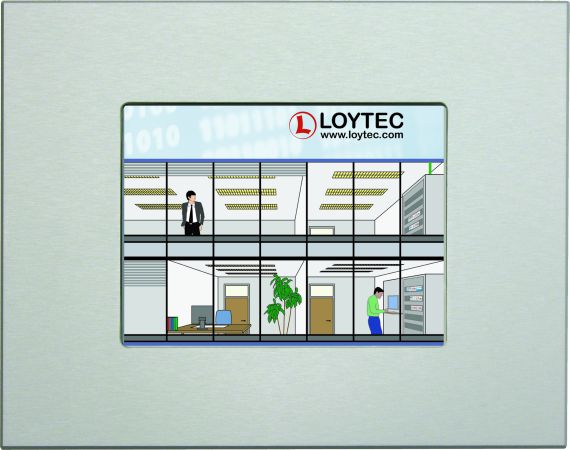

L-VIS Control and display panel

Control and display panel for BACnet networks,
Meticulously finished aluminium surface, Flush-mounting in combination with wall mounting box (included), Graphical user interface with touch display, Clear and user friendly navigation menus, High resolution 320x240 color LC touch display with backlight, 256 colors (VGA), Representation of user defined graphics, numbers, text, bar charts, trend logs, and bitmaps, Visualization and control of individual data points (BACnet objects), Alarming, alarm generator, External temperature sensor (optional), Input for external light switch, Network ports: BACnet MS/TP or BACnet/IP, Simple, graphical programming with PC configuration tool (free download), scan and EDE import, WYSIWYG preview on PC screen, Up to 500 BACnet server objects can be processed, supports trending, scheduling, and alarming locally and by referring to remote BACnet trendlog, schedule, and notification objects, Input voltage: 9-24V AC or DC.
